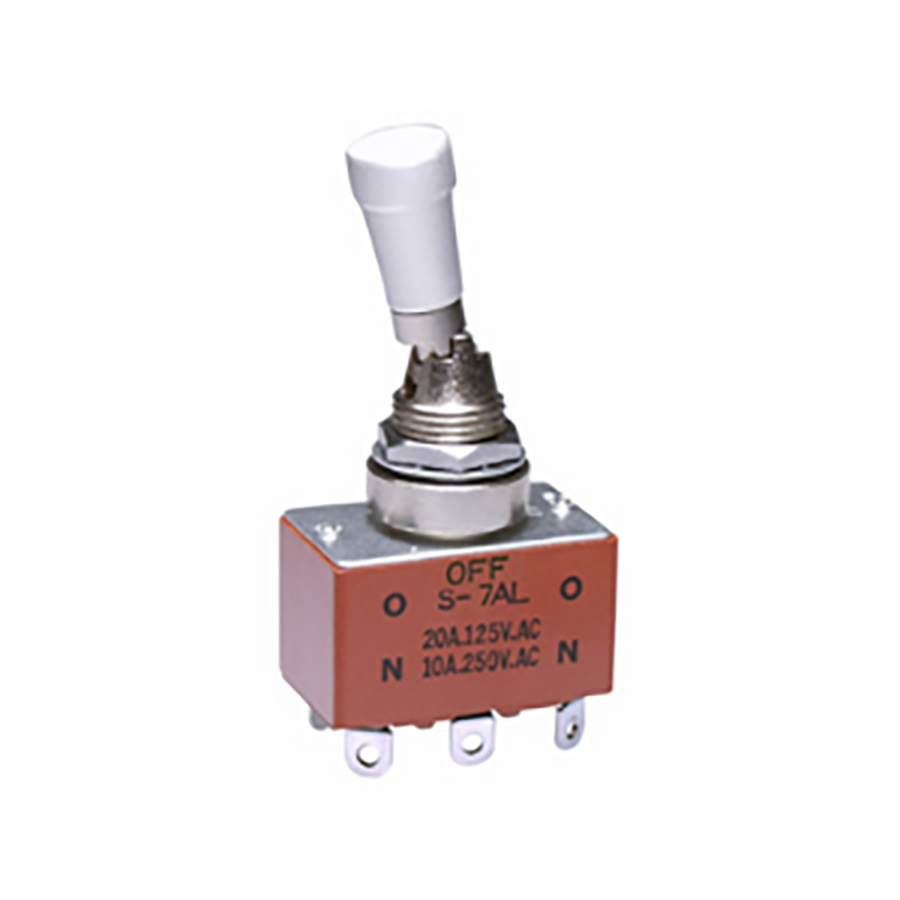

S7AL
Manufacturer:
NKK Switches
Mfr.Part #:
S7AL
Datasheet:
Description:
Toggle Switches Panel Mount Current Rating:20 A DPDT ON - OFF - ON Locking Lever
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 125 V |
| Circuit Type | DPDT |
| Packaging | Bulk |
| RoHS | Compliant |
| Current Rating | 20 A |
| Actuator Length | 23.5 mm |
| Switch Function | ON - OFF - ON |
| Illumination Type | Non-Illuminated |
| Actuator Type | Locking Lever |
| Termination Style | Solder Lug |
| IP Rating(Ingress Protection) | IP67 |
Stock: 152
Distributors
pcbx
pcbxUnit Price$14.73813
Ext.Price$14.73813
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $14.73813 | $14.73813 |
| 10 | $13.38563 | $133.85630 |
| 25 | $13.00144 | $325.03600 |
| 50 | $12.62827 | $631.41350 |
| 100 | $12.26567 | $1226.56700 |
